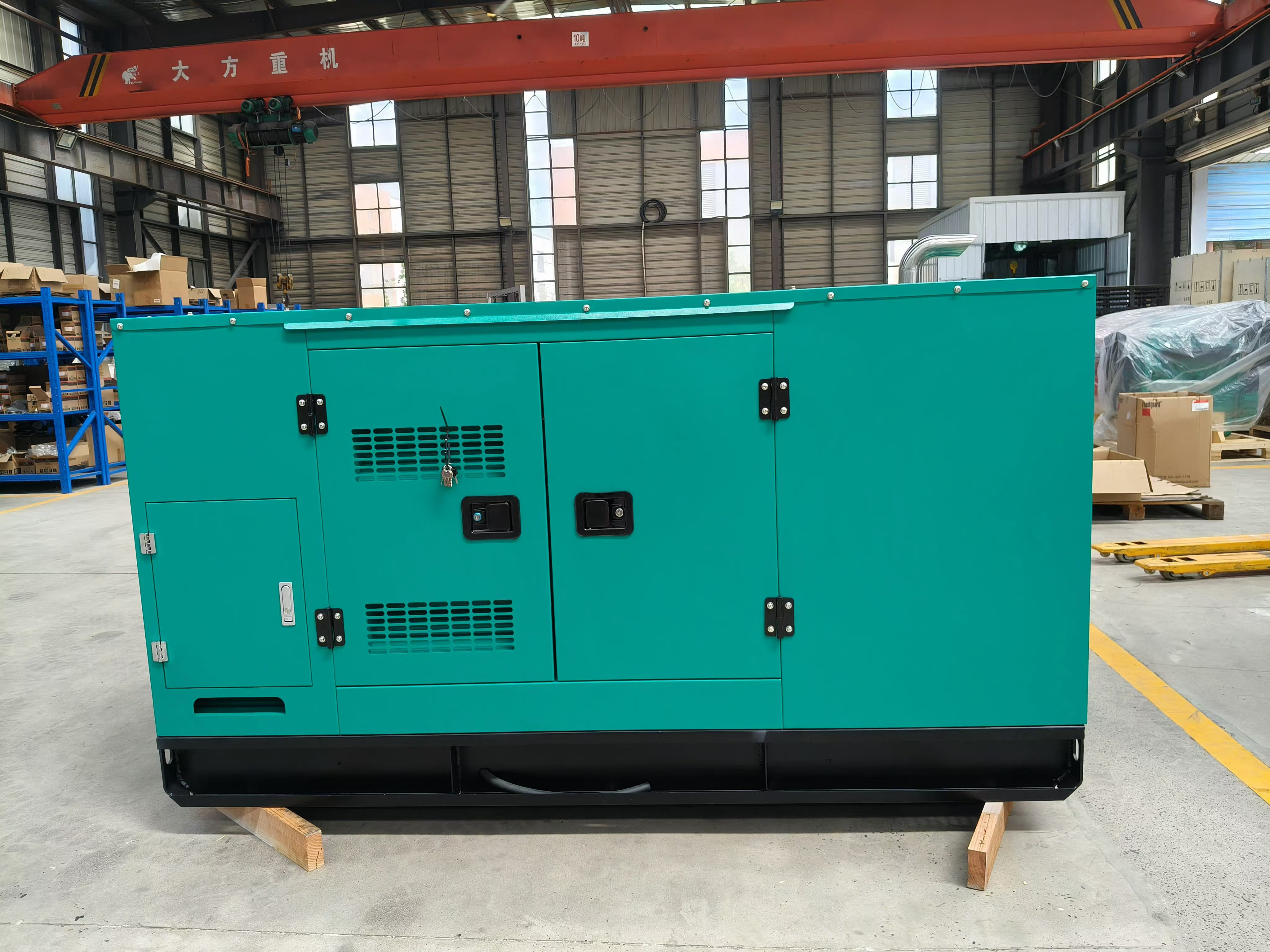

Attention Points of Cummins Enclosed Silent Generator Indoor Installation

Attention Points of Cummins Enclosed Silent Generator Indoor Installation

Cummins enclosed silent generator installed indoors, need to pay attention to the following points:

‌

Choose the right installation site: when indoor installation, the silent generator and the surrounding walls should be no less than 1 meter‌. And the silent generator end should have enough air intake, and the diesel engine end should have a good air outlet. The area of the outlet should be more than 1.5 times the area of the radiator.

‌

Setup of smoke exhaust pipe: The smoke exhaust pipe should be connected to the outdoor, the pipe diameter should be greater than the diameter of the smoke exhaust pipe of the silencer, and the elbow of the connected pipe should not exceed 3 to ensure the smooth smoke exhaust. The smoke exhaust pipe should be tilted down 5-10 degrees to avoid rain injection; If the exhaust pipe is installed vertically upwards, install a rain cover ‌.

‌

Fixing and damping: Based on concrete foundation, the generator should be fixed on the basis of the level, using a level to measure its levelness. There should be special shockproof pads or foot bolts between the generator and the foundation to reduce vibration and noise ‌.

‌

Grounding and safety: For generators requiring direct grounding of neutral points, neutral grounding should be carried out by professionals, and lightning protection devices should be configured. Do not use the grounding device of the mains to directly ground the neutral point ‌.

‌

Noise reduction and noise control: In order to reduce noise pollution, smoke exhaust pipes should be insulated and silencers should be set up to reduce noise. Keep the area around the installation site clean, avoid placing corrosive gases and vapors such as acid and alkali, and install fire extinguishing devices if conditions permit.

‌

Power switching device: the bidirectional switch between the motor and the mains must be very reliable to prevent reverse power supply. The cable connection reliability of the bidirectional switch must be verified and approved by the local power supply department ‌.

Through the above steps, you can ensure the stability, safety and good silence effect of Cummins enclosed silent generator when installed indoors, and meet the needs of power supply.
