Comparative Analysis of Cummins ISB6.7 and QSB6.7 Diesel Engines

Word Count: Approximately 2980 | Original Academic Paper | Suitable for Mechanical Engineering / Automotive & Construction Machinery Major

Abstract

The Cummins B-series diesel engine platform is one of the most successful medium-displacement powertrain families in global commercial vehicle and off-highway machinery history. Derived from the classic ISB5.9 platform, ISB6.7 and QSB6.7 share the same 6.7-liter inline-six architecture but are developed for differentiated application scenarios: ISB6.7 targets on-highway medium-duty trucks, coaches and transit buses, while QSB6.7 serves off-highway equipment including excavators, loaders, agricultural machinery and stationary power units. Although the two models adopt many common core mechanical components, their calibration strategies, turbocharging layouts, electronic control modules, aftertreatment configurations and durability reinforcement designs are significantly differentiated to adapt to highway cyclic driving and variable heavy-load off-road working conditions. This paper systematically reviews the technical evolution of the B-series platform, compares structural parameters, combustion systems, emission control schemes, performance characteristics and maintenance features of ISB6.7 and QSB6.7, analyzes the root causes of their design divergence, and discusses application selection principles, common failure modes and aftermarket operation suggestions. The research reveals how Cummins realizes platform modularization while satisfying customized demands of on-highway and off-highway markets, which provides reference for powertrain matching, equipment procurement and engineering maintenance.

Keywords: Cummins; ISB6.7; QSB6.7; medium-duty diesel engine; on-highway engine; off-highway engine; modular platform; emission aftertreatment

1. Introduction

Since the launch of the first-generation B-series engine in the 1980s, Cummins has produced more than 12 million units worldwide, establishing a reputation for compact structure, strong low-speed torque and robust adaptability to complex fuel quality. The displacement upgrade from 5.9 L to 6.7 L marked an important technical turning point. Two branch products were formed: ISB6.7 for on-highway vehicles and QSB6.7 for non-road mobile machinery.

In the global engine industry, many manufacturers adopt shared cylinder block platforms to reduce research and development costs, yet most enterprises simply carry over mechanical structures without targeted calibration differentiation. Cummins adopts a refined differentiated development route: the same base engine hardware is matched with customized turbochargers, ECM software, cooling systems and aftertreatment packages to satisfy distinct duty cycles. At present, existing literature mostly introduces ISB6.7 or QSB6.7 independently, while systematic comparative research on the two sibling models is insufficient. Many equipment purchasers and maintenance engineers confuse the two engines, leading to improper matching, wrong spare parts selection and shortened service life.

This paper focuses on resolving the following core questions:

1. What common hardware designs are shared by ISB6.7 and QSB6.7, and which components are specially modified?

2. How do duty cycle differences between highway transportation and off-road construction determine calibration and emission scheme differences?

3. What criteria should equipment manufacturers and end users follow when selecting ISB6.7 or QSB6.7?

4. What are typical reliability weaknesses of each model under their respective working conditions?

The research data is collected from official Cummins product brochures, service manuals, field maintenance cases and public technical documents. Comparative analysis is adopted as the main research method.

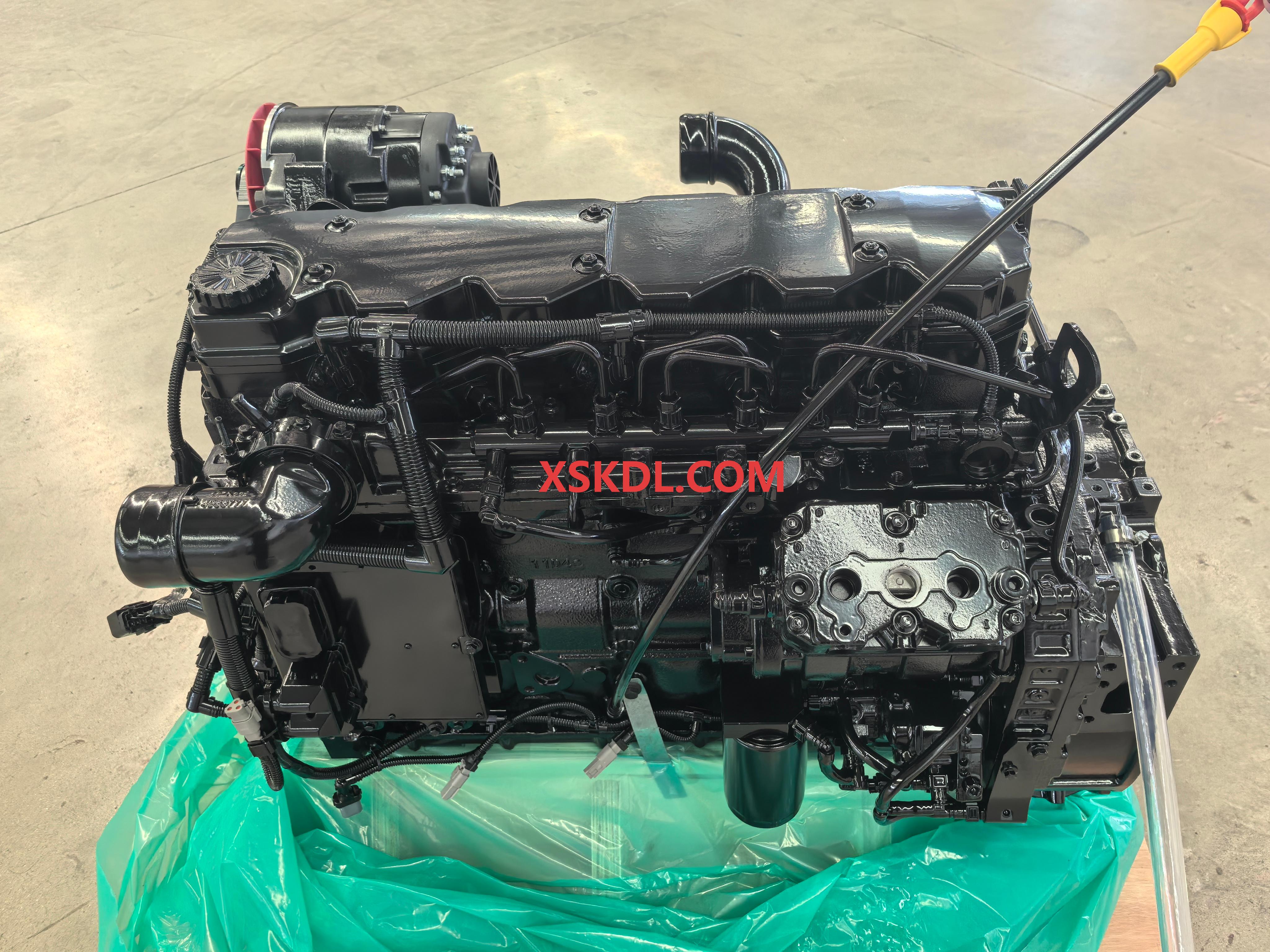

2. Platform Background and Basic Structural Overview

2.1 Origin of the 6.7L B-series Platform

The ISB5.9 engine laid the foundation of Cummins medium-duty commercial vehicle power. Facing increasingly strict global emission regulations and growing demand for higher payload capacity, Cummins extended cylinder stroke and upgraded the cooling system to develop the 6.7-liter version. The letter naming rule represents product positioning: “IS” stands for Interact System, on-highway electronic control engine; “Q” originates from Quantum series, representing off-highway industrial engines.

Both engines adopt inline six-cylinder, four-stroke, water-cooled, turbocharged and intercooled layout. Basic shared parameters are summarized as follows:

• Displacement: 6.7 L

• Valve arrangement: 24 valves (4 valves per cylinder)

• Fuel system: High Pressure Common Rail (HPCR)

• Combustion mode: Direct injection diesel combustion

• Cylinder block material: Cast iron; cylinder head: reinforced cast iron

Nevertheless, similarities in basic parameters cannot mask systematic design differences. The biggest divergence lies in design objectives: ISB6.7 pursues balance of fuel economy, driving smoothness and highway continuous cruising reliability; QSB6.7 prioritizes transient load response, anti-overload capacity and durability under dusty, frequent start-stop working environments.

2.2 Main Parameter Comparison

ISB6.7 (On-highway Version)

• Rated power range: 164 kW – 239 kW (220 hp – 320 hp)

• Rated speed: 2300–2500 rpm

• Peak torque: 900–1200 N·m; torque band concentrated at 1200–1800 rpm

• Representative certifications: Euro 4/5/6, EPA 2010, China National IV/V/VI

• Typical applications: Medium-duty trucks, city buses, tourist coaches, sanitation vehicles

QSB6.7 (Off-highway Version)

• Rated power range: 99 kW – 194 kW (133 hp – 260 hp)

• Rated speed: 2200 rpm (standard industrial calibration)

• Peak torque: 584–990 N·m; optimized for low-speed heavy load below 1600 rpm

• Representative certifications: Tier 3/4 Final, CEV Stage IV/Stage V, China Non-road Stage III/IV

• Typical applications: Wheel loaders, excavators, tractors, irrigation pumps, mobile generators

One obvious difference is maximum power output. ISB6.7 supports higher rated power because highway vehicles allow stable high-speed operation; QSB6.7 limits peak power to avoid thermal fatigue under frequent sharp load fluctuations in construction scenarios.

3. Core System Comparative Analysis

3.1 Air Intake and Turbocharging System

ISB6.7 is widely equipped with Cummins VGT variable geometry turbocharger. VGT continuously adjusts nozzle area according to vehicle speed and accelerator demand. During highway cruising, it reduces pumping loss to improve fuel efficiency; during acceleration, it eliminates turbo lag for better drivability. The intercooler layout is matched to vehicle front-mounted radiator packages.

QSB6.7 adopts two turbo configurations according to emission tiers: fixed geometry turbocharger for Tier 3 non-EGR versions; modified VGT or wastegate-controlled turbo for Tier 4/Stage V models. Compared with ISB6.7, the turbo of QSB6.7 is reinforced against impact load. Off-highway machinery frequently surges and sheds load, which easily causes turbo speed fluctuation. Meanwhile, air intake filtration of QSB6.7 is upgraded: larger-capacity air filter housings are reserved to adapt to high-dust construction sites, while standard ISB6.7 air intake systems target relatively clean road environments.

3.2 Fuel Injection and Electronic Control System

Both rely on high-pressure common rail fuel systems with injection pressure up to 1800 bar, supporting pre-injection, main injection and post-injection to suppress noise and optimize emission formation.

The divergence concentrates on electronic control modules:

1. ECM hardware numbers and calibration files are not interchangeable. ISB6.7 series mainly uses CM2250, CM2350 calibrated for vehicle transmission coordination; QSB6.7 mostly adopts CM850 and CM2350 industrial versions, with PTO power output control logic embedded.

2. Speed limit and torque protection strategy differ. ISB6.7 sets continuous cruising speed protection; QSB6.7 strengthens instantaneous overload tolerance, allowing short-term torque overload during excavation and loading operations.

3. Sensor configuration: ISB6.7 reserves interfaces for vehicle CAN bus, cruise control and automatic transmission; QSB6.7 prioritizes hydraulic pump PTO signal coordination for engineering equipment.

Many maintenance mistakes occur because users flash ISB6.7 calibration programs into QSB6.7 engines, resulting in abnormal torque output and frequent fault alarms.

3.3 Emission Control and Aftertreatment Architecture

Emission regulation categories fundamentally separate the two models. On-highway standards and non-road standards have different limits on NOₓ, PM and test cycles.

ISB6.7 aftertreatment evolution:

• Euro 4/EPA 2007: Cooled EGR + DPF

• Euro 5/EPA 2010: EGR + DPF + SCR

• Euro 6: Optimized cooled EGR, VGT, copper zeolite SCR and integrated particulate filter. The system is compactly packaged to fit truck chassis space.

QSB6.7 aftertreatment schemes:

• Tier 3: No aftertreatment; rely on internal combustion optimization

• Tier 4 Final / CEV Stage V: Single-module ATS integrating DPF and SCR. Many versions cancel EGR to reduce complexity. Off-highway equipment often works under low-load, low-exhaust-temperature conditions. EGR easily causes condensation corrosion and increased maintenance cost, so Cummins chooses EGR-free routes for multiple QSB6.7 variants.

This is a vital design distinction: ISB6.7 extensively uses cooled EGR to cut NOₓ formation inside cylinders; many QSB6.7 versions abandon EGR and realize emission compliance purely through post-combustion SCR.

3.4 Cooling System and Mechanical Durability Reinforcement

ISB6.7 cooling system is matched to steady-state highway thermal load. Thermostat opening temperature and fan control logic focus on maintaining constant temperature during long-distance running.

QSB6.7 faces frequent cold start, alternating heavy load and idle operation. Therefore, the water pump flow rate, oil cooler capacity and crankcase ventilation system are strengthened. The oil pan structure is optimized for inclined installation, as construction machinery often works on slopes. Some QSB6.7 variants add reinforced piston cooling nozzles to handle sustained high torque under low rotating speed.

4. Performance Characteristics and Application Adaptability

4.1 Duty Cycle Matching Analysis

Medium-duty trucks and buses equipped with ISB6.7 operate under repeated acceleration, cruising and deceleration. The working cycle features stable load and continuous medium-speed operation. Therefore, calibration prioritizes flat torque curves within highway commonly used speed range and low brake-specific fuel consumption (BSFC) at cruising condition.

QSB6.7 installed on loaders and excavators experiences frequent sudden load impact: idle, full load, partial load alternate rapidly. The design goal is fast torque response below 1600 rpm. Fuel consumption under steady state is sacrificed appropriately to obtain stronger transient load capacity. If users mistakenly install ISB6.7 on excavators, insufficient low-speed transient torque will reduce working efficiency and trigger frequent thermal load alarms. If QSB6.7 is matched to highway trucks, fuel consumption will rise significantly during long-distance cruising.

4.2 Maintenance Interval and Operating Cost

Under standard working conditions:

• ISB6.7 oil change interval: 20,000 km or 1000 operating hours (whichever comes first)

• QSB6.7 oil change interval: 250–500 hours under severe dusty construction environment

The shorter maintenance cycle of QSB6.7 reflects harsher service environment. Filter consumables are not fully universal: air filters, fuel filters of QSB6.7 usually adopt higher-grade filter media. Although many mechanical spare parts such as cylinder liners, pistons and bearings are interchangeable, engine wiring harnesses, sensors and aftertreatment components cannot be replaced mutually.

5. Common Failure Risk and Engineering Suggestions

5.1 Typical Faults of ISB6.7

1. VGT turbo actuator carbon accumulation under long-distance low-load highway operation

2. DPF frequent regeneration failure for urban buses with many short trips

3. EGR cooler leakage caused by long-time low exhaust temperature

5.2 Typical Faults of QSB6.7

1. Air filter blockage due to poor site dust control, leading to turbo premature wear

2. SCR crystallization when equipment operates long hours under idle low-load state

3. Crankcase ventilation system overload under frequent impact load

5.3 Selection Guidance for End Users

1. For road vehicles including trucks, buses and road sanitation equipment: choose ISB6.7;

2. For excavators, loaders, agricultural machinery, fixed power units: select QSB6.7;

3. Avoid cross-scenario replacement. Even if the engine dimensions look similar, mismatched calibration will reduce reliability and violate emission certification;

4. Global spare parts procurement must distinguish model codes and CPL numbers. Many overseas purchasers confuse ISB6.7 and QSB6.7 and order incorrect spare parts.

6. Discussion

The coexistence of ISB6.7 and QSB6.7 demonstrates Cummins’ modular platform strategy. Based on unified cylinder block foundation, targeted modification of air intake system, electronic calibration and aftertreatment realizes two differentiated products. Compared with developing completely separate engine platforms, this mode greatly reduces casting and tooling investment, shortens product development cycle and realizes scale effect of basic components.

From industry perspective, the boundary between on-highway and off-highway engines is gradually blurred. New hybrid engineering vehicles and multi-purpose special vehicles put forward higher requirements for powertrain adaptability. Future iterations of the B6.7 platform may adopt more universal hardware and switchable calibration software to realize wider application coverage. However, fully canceling model differentiation is not feasible, because the fundamental difference of duty cycles determines different demands on thermal management and mechanical fatigue resistance.

Limitations of this research: Due to access restrictions, original bench test data of internal fuel consumption mapping cannot be quoted. Further research can collect field operation data of fleets and construction machinery to quantify fuel consumption difference of two engines under similar power output.

7. Conclusion

ISB6.7 and QSB6.7 originate from the same 6.7 L B-series modular platform and share basic mechanical structures including cylinder block, cylinder head and high-pressure common rail fuel system. However, facing on-highway and off-highway differentiated duty cycles, Cummins implements systematic differentiation in turbocharging configuration, electronic control calibration, cooled EGR layout, aftertreatment schemes and cooling system reinforcement.

ISB6.7 is optimized for medium-duty highway vehicles, featuring wide economical cruising range, matched transmission control and mature multi-stage highway emission compliance. QSB6.7 targets construction and agricultural machinery, focusing on low-speed transient torque, anti-impact durability and simplified aftertreatment suitable for variable load environments.

For engine distributors, equipment manufacturers and terminal operators, clearly distinguishing ISB6.7 and QSB6.7 is critical for correct matching, spare parts supply and reducing failure risk. Platform modularization plus customized calibration will remain the mainstream technical route for medium-displacement diesel engines in the global market. With continuously tightening emission standards, further optimization of aftertreatment integration and intelligent electronic control will promote continuous upgrade of the B6.7 engine family.

References

[1] Cummins Inc. ISB6.7 Engine Product Manual, 2021.

[2] Cummins Inc. QSB6.7 Off-Highway Engine Specification Brochure, 2022.

[3] Stanton D. Medium-Duty Diesel Engine Platform Design for On-Highway and Off-Highway Applications. International Journal of Engine Research, 2019.

[4] Wang L. Analysis of Emission Aftertreatment Routes for Non-road Diesel Engines. Chinese Internal Combustion Engine Engineering, 2023.

[5] Robert B. Turbocharger Matching Strategy for Variable Duty Cycle Construction Equipment. SAE Technical Paper, 2020.
