Cummins 6CTA8.3-G2 Diesel Engine

Cummins 6CTA8.3-G2 Diesel Engine

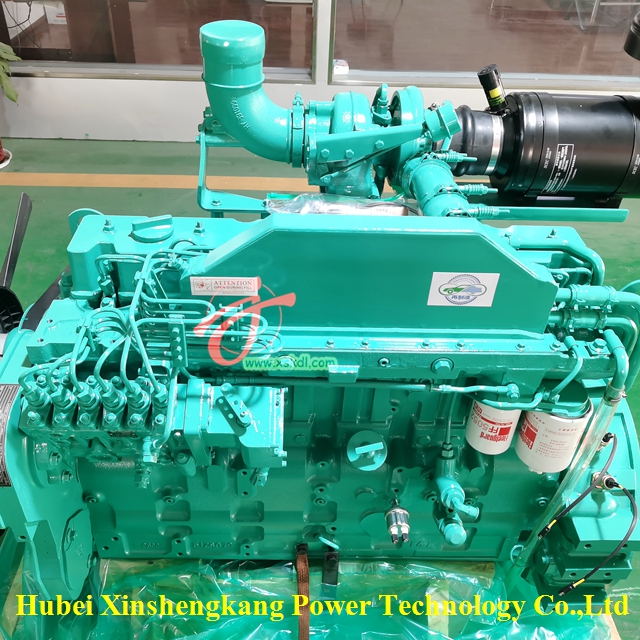

The Cummins 6CTA8.3-G2 stands as a robust, industry-proven 4-stroke inline 6-cylinder diesel engine purpose-built for stationary power generation applications, earning a solid reputation across industrial, commercial and critical backup power scenarios worldwide. Developed on Cummins’ mature 8.3-liter engine platform, this power unit integrates advanced turbocharging, jacket water aftercooling and electronically controlled management systems, delivering an ideal balance of high power output, exceptional fuel economy, long-term operational reliability and low maintenance costs that align perfectly with the strict requirements of modern industrial power systems.

Core Technical Specifications and Structural Design

At the heart of the 6CTA8.3-G2 lies a precisely engineered 6-cylinder inline configuration with a bore and stroke of 114mm × 135mm, resulting in a total displacement of 8.3 liters (505 cu. in.). This carefully calibrated cylinder dimension design not only ensures sufficient combustion space for full fuel burn, but also generates stable torque output across the full operational speed range. The cylinder bore adopts a platform mesh honing process, a sophisticated geometric treatment that effectively prevents engine oil leakage, while paired with newly developed piston ring components and advanced gasket crimping molding technology, it drastically reduces unnecessary oil consumption and extends the service life of core moving parts.

The engine adopts a turbocharged and jacket water aftercooled aspiration system, which compresses intake air through the turbocharger to increase air density, then cools the high-temperature compressed air via the jacket water aftercooler before it enters the combustion chamber. This design significantly boosts volumetric efficiency, allows the engine to release higher power under the same displacement, effectively lowers combustion temperatures, reduces thermal load on key components, and curtails the generation of harmful exhaust emissions. Its fuel system is equipped with a Beiyou PB pump paired with an electronic speed regulator, replacing the traditional mechanical speed control structure to achieve far more precise fuel injection quantity and timing control. This electronic management method ensures the engine can respond rapidly to sudden load changes, maintaining a stable speed fluctuation rate within a very narrow range, which is critical for power generation scenarios that demand consistent frequency output.

The five core electronically controlled systems of the 6CTA8.3-G2 are all independently developed by Dongfeng Cummins (DCEC), and have undergone long-term field verification in diverse global application scenarios including plateau mining areas, high-temperature tropical regions and cold northern zones. This extensive real-world testing guarantees the engine’s outstanding economy and reliability even under harsh working conditions. The engine’s net dry weight with standard accessories is 702kg, with overall dimensions of 1182mm in length, 710mm in width and 1137mm in height, a compact layout that makes it highly adaptable for installation in various generator set chassis, whether for open-type units or silent soundproof enclosures. For the SQC175(S) generator set that matches this engine, the open-type unit measures 2360mm × 847mm × 1366mm with a total weight of 1782kg, while the silent-type version reaches 3600mm × 1333mm × 2040mm and weighs 3040kg, fully meeting the installation and operation requirements of different industrial sites.

Power Output Performance and Rating Standards

The 6CTA8.3-G2 offers two standard rated speeds to suit different regional power grid frequency requirements: 1500 RPM for 50Hz power systems and 1800 RPM for 60Hz power systems, with its power rating guidelines strictly formulated in accordance with the ISO 8528 international standard and Cummins’ official Power Rating Application Guidelines (Reference: AEB 26.02).

At 1500 RPM, the engine delivers three distinct power levels tailored to different usage scenarios: the standby power rating reaches 180 kWm (241 BHP), designed for emergency backup scenarios where the unit can run at maximum power to cover full load when the mains power fails; the prime power rating hits 163 kWm (219 BHP), suitable for applications that allow unlimited annual operation hours and can bear variable loads continuously; the continuous power rating is 133 kWm (178 BHP), intended for long-term uninterrupted operation under constant load, such as prime power supply for remote areas without grid coverage. At 1800 RPM, the power performance is further enhanced: the standby power rating reaches 207 kWm (277 BHP), the prime power rating is 188 kWm (252 BHP), and the continuous power rating hits 159 kWm (213 BHP). It is important to note that all these power parameters refer to the gross power output of the engine itself, not the final output power of the complete generator set, and users need to reserve a reasonable power margin when selecting and configuring the unit.

The performance test data of the 6CTA8.3-G2 is collected under the ISO 3046 Part 1 standard reference conditions: atmospheric pressure of 100 kPa (29.53 in. Hg, corresponding to an altitude of 361 ft / 110 m), intake air temperature of 25°C (77°F), relative humidity of 30%, and the engine is equipped with standard components including fuel system, water pump, lubricating oil pump, air cleaner and exhaust silencer, excluding auxiliary parts such as battery charging alternator and cooling fan. The fuel used for testing is No. 2D diesel that meets the ASTM D975 standard, ensuring the authenticity and comparability of all performance indicators. The fuel consumption curve shows that at 1500 RPM, when the gross engine power output reaches 180 kWm, the fuel consumption is controlled at approximately 50 liters per hour; at 1800 RPM, when the power output is close to 207 kWm, the fuel consumption remains at a relatively low level, demonstrating excellent fuel economy under full load conditions. Cummins also explicitly recommends that the engine should not operate below 30% of its standby power rating for a long time, as low-load operation will lead to insufficient combustion, increased carbon deposition in cylinders, diluted lubricating oil and a series of adverse consequences, which will seriously shorten the service life of the engine.

Supporting Systems and Operational Advantages

The lubrication system of the 6CTA8.3-G2 has a total oil capacity of 23.8 liters (6.3 U.S. gal.), which can fully cover the lubrication demand of all moving parts from crankshaft connecting rods to valve trains under high-load operation. The large-capacity oil sump extends the oil change interval, reduces the frequency of daily maintenance, and ensures that the lubricating oil maintains stable viscosity and excellent friction-reducing performance even after long hours of operation. The cooling system has a coolant capacity of 12.3 liters (3.25 U.S. gal.), matched with a genuine Cummins radiator and engine-driven cooling fan, which can effectively take away the heat generated during engine operation, maintain the best working temperature of the engine in different ambient temperatures, and avoid overheating shutdown failures even in high-temperature seasons or enclosed silent cabins.

Matched with high-quality generators such as Stamford UCI274F single-bearing alternator, the complete generator set equipped with 6CTA8.3-G2 can achieve a voltage output of 400/230V 50Hz or 220/127V 60Hz, with a protection level reaching IP23 and insulation class H/H, which can adapt to dusty and humid industrial operation environments. The unit integrates a fully automatic control function: when the mains power fails, it can automatically start within a few seconds, complete load transfer, and automatically switch back to the mains power supply and enter the cooling shutdown state after the mains is restored. It also supports external signal remote start, which is convenient for users to realize centralized remote monitoring and management of multiple generator sets. This series of generator sets are specially developed for industrial scenarios, with a user-friendly operation interface and straightforward maintenance procedures, and the optional configurations can fully cover the power demand of various industrial applications, becoming a reliable "predictable power" solution for users.

Application Scenarios and Long-Term Value

Thanks to its outstanding comprehensive performance, the Cummins 6CTA8.3-G2 diesel engine is widely used in numerous fields. In industrial manufacturing, it serves as backup power for factories, ensuring that production lines will not stop due to unexpected power outages, avoiding huge economic losses caused by production interruptions. In the field of data centers and communication base stations, its stable power output can guarantee the continuous operation of servers and communication equipment, preventing data loss and communication paralysis. In the construction industry, it can be assembled into mobile power stations to provide reliable power support for engineering equipment on construction sites far away from the power grid. In the medical and financial sectors, it acts as the core of emergency power systems for hospitals and banks, ensuring that key equipment such as surgical devices and transaction servers can operate normally at critical moments.

As a mature power platform that has been verified by the market for many years, the 6CTA8.3-G2 also has a global spare parts supply system and a professional after-sales service network. Users can easily find original parts and obtain technical support in any region, which greatly reduces the difficulty of later operation and maintenance. Even in high-altitude areas with thin air or high-temperature environments exceeding 40°C, users can obtain derating operation parameters through Cummins’ official technical manual, ensuring that the engine can still operate safely and stably under non-standard environmental conditions.

In conclusion, the Cummins 6CTA8.3-G2 diesel engine has become a preferred power choice in the field of medium-power generator sets with its solid structural design, excellent power performance, outstanding fuel economy and extremely high operational reliability. Whether it is used for emergency backup power, prime power supply or continuous industrial power scenarios, it can deliver stable and efficient power output, creating long-term and reliable value for users.
