Differences Between Dongfeng Cummins Marine Engines and Foreign-Built Marine Engines
Introduction
Dongfeng Cummins Engine Co., Ltd. (DCEC), a Sino-US joint venture between Dongfeng Motor Corporation and Cummins Inc., manufactures marine engines primarily for auxiliary and light-to-medium propulsion applications in inland waterways, coastal vessels, and small commercial craft. Foreign-built marine engines, represented by global leaders such as Cummins Inc. (US), MAN Energy Solutions (Germany), Caterpillar (US), and Wärtsilä (Finland), cover a broader spectrum from high-power main propulsion engines for ocean-going vessels to specialized auxiliary units. While both share Cummins’ core technical standards, DCEC marine engines and foreign counterparts differ significantly in product positioning, manufacturing localization, performance calibration, cost structure, service networks, and application adaptability.
1. Product Line and Power Range: Localized Focus vs. Global Coverage
DCEC Marine Engines
DCEC’s marine engine portfolio centers on mid-to-small displacement models tailored for the Chinese and Asian inland/coastal marine markets. Key series include B3.9, B5.9, C8.3, and L8.9, with power outputs ranging from 47 kW to 215 kW (63 hp to 288 hp) and displacements from 3.9 L to 8.9 L. These engines are designed as auxiliary generators or main propulsion for small fishing boats, inland cargo vessels, passenger ferries, and workboats operating in rivers, lakes, and nearshore waters. For example, the 4BTA3.9-GM55 (55 kW/1500 rpm) is a typical 50Hz marine auxiliary engine widely used in small inland vessels, prioritizing compactness, cost-effectiveness, and adaptability to local fuel quality. The L8.9 series (up to 215 kW) targets medium-sized coastal workboats, featuring a 4-valve structure and extended stroke for enhanced low-speed torque and fuel efficiency.
Foreign-Built Marine Engines
Foreign manufacturers offer a full-spectrum product line spanning ultra-low-speed two-stroke main engines (for large container ships and bulk carriers) to high-speed four-stroke auxiliary and propulsion engines. Cummins Inc.’s global marine lineup includes QSK60 (2237 kW/3000 hp), QSK95 (3132 kW/4200 hp), and KTA38 (634–1119 kW), catering to ocean-going vessels, offshore platforms, and large commercial fleets. MAN Energy Solutions’ ME-C series two-stroke engines deliver power up to 80,000 kW for ultra-large container vessels, while Wärtsilä’s dual-fuel engines lead in LNG-powered marine applications. Unlike DCEC’s localized focus, foreign engines are engineered for global maritime standards, with power ranges covering 25 kW to over 100,000 kW, supporting all vessel types from small yachts to VLCCs (Very Large Crude Carriers).

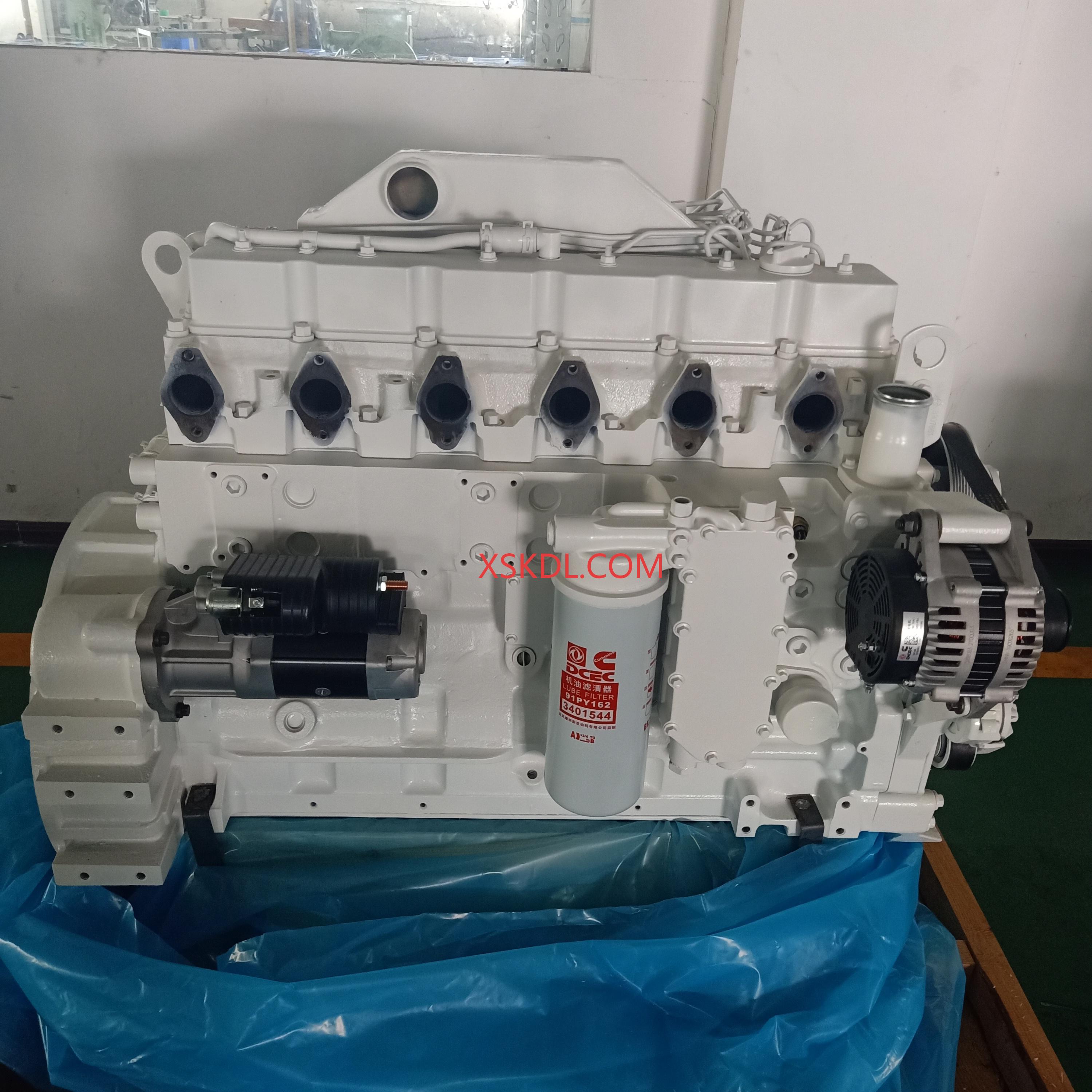

Example Comparison: A DCEC 6CTA8.3-GM155 (155 kW) auxiliary engine is ideal for a 500-ton inland cargo barge, while a foreign-built Cummins QSK60 (2237 kW) main engine powers a 50,000 DWT coastal bulk carrier—illustrating the gap in power capacity and application scope.
2. Manufacturing and Localization: Domestic Supply Chain vs. Global Precision
DCEC
DCEC produces marine engines in Xiangyang, Hubei, with a high degree of localization in component sourcing and assembly. Core components like cylinder blocks, cylinder heads, and crankshafts are manufactured domestically using Cummins’ global design specifications, while key parts (e.g., Bosch fuel injection systems, Holset turbochargers) are imported or locally assembled under license. The manufacturing process emphasizes cost optimization and adaptability to Chinese production conditions, with integrated cylinder block/head design to reduce parts count by ~40% compared to domestic competitors, lowering failure rates. For instance, the B3.9 series uses a simplified integrated structure, with fewer gaskets and seals to minimize oil/water leaks, a critical advantage in China’s inland waterway maintenance environments. However, production tolerances and material processing precision may vary slightly from foreign-built units due to domestic manufacturing infrastructure differences.
Foreign-Built Engines
Foreign marine engines are manufactured in facilities with decades of precision engineering experience (e.g., Cummins’ US plants, MAN’s German factories). These facilities adhere to stricter global quality control standards, with tighter machining tolerances (±0.005 mm for critical components vs. ±0.01 mm for DCEC) and premium materials (e.g., high-nickel alloy pistons, forged steel crankshafts) for extreme marine conditions. Foreign production emphasizes zero-defect assembly, with 100% testing for vibration, leakage, and performance under simulated ocean conditions. For example, Cummins’ US-built QSK95 marine engine undergoes 500 hours of continuous bench testing before shipment, ensuring reliability for 20,000+ hours of operation—far exceeding DCEC’s standard 100-hour testing for mid-power models.
Example: The DCEC C8.3 series uses domestically sourced cast iron cylinder blocks with integrated design, while the foreign-built Cummins K19 series uses precision-forged alloy blocks with multi-stage heat treatment, resulting in 30% higher fatigue resistance for long-haul ocean operations.
3. Performance Calibration: Regional Adaptability vs. Global Standardization
DCEC
DCEC marine engines are calibrated specifically for Asian marine operating conditions, focusing on fuel adaptability, cold-start performance, and low-speed torque. Key optimizations include:
Fuel Compatibility: Tuned for lower-quality diesel (sulfur content up to 500 ppm) common in inland Chinese waterways, with dual-stage fuel filters (10μm + 5μm) to prevent injector clogging.
Cold-Start Capability: Equipped with 6.6 kW intake preheating systems and high-power starters, validated at -36°C in Mohe, China—critical for northern Chinese winter operations.
Low-Speed Response: Holset turbochargers with integral wastegates enhance low-end torque, ideal for frequent maneuvering in narrow inland waterways.
The B5.9 series, for example, delivers 1800 N·m peak torque at 1200 rpm, ensuring stable power delivery at low speeds for fishing boats with heavy loads.
Foreign-Built Engines
Foreign marine engines are calibrated to global emissions and performance standards (IMO Tier II/III, EPA Tier 3), prioritizing fuel efficiency, high-speed durability, and emission compliance over regional fuel adaptability. Key features include:
High-Precision Fuel Systems: Common-rail injection with pressures up to 2500 bar (vs. 1800 bar for DCEC), enabling ultra-clean combustion and compliance with strict international emissions rules.
High-Speed Stability: Optimized for continuous high-speed operation (1800–2100 rpm) in ocean-going vessels, with enhanced thermal management to withstand saltwater corrosion and prolonged heavy loads.
Emission Technology: Integrated SCR (Selective Catalytic Reduction) or EGR (Exhaust Gas Recirculation) systems as standard, meeting IMO Tier III without aftermarket modifications—mandatory for international voyages.
Cummins’ QSK60 marine engine, for instance, achieves 48% thermal efficiency and meets IMO Tier II, with a fuel consumption rate of 195 g/kWh (vs. DCEC’s 210 g/kWh for L8.9) at rated load.
Example: A DCEC L8.9 engine operates reliably on 500 ppm sulfur diesel in the Yangtze River, while a foreign-built MAN 12V28/33S engine requires ultra-low-sulfur diesel (<10 ppm) to maintain emission compliance for transoceanic routes.
4. Cost and Value Proposition: Affordability vs. Premium Performance
DCEC
DCEC marine engines offer a significant cost advantage due to localization:
Lower Purchase Price: 20–30% cheaper than equivalent foreign-built Cummins models, e.g., a DCEC 6LTAA8.9-GM215 (215 kW) costs ~¥180,000, vs. ~¥240,000 for a US-built Cummins QSL9 (220 kW).
Reduced Maintenance Costs: Simplified design with fewer parts cuts maintenance time by 50% vs. foreign engines; domestic spare parts are 30–50% cheaper, with faster delivery in China.
Shorter Lead Times: Local production reduces delivery cycles from 12–16 weeks (foreign) to 4–6 weeks, critical for small vessel operators with tight schedules.
These advantages make DCEC engines the preferred choice for cost-sensitive inland and coastal operators in China and Southeast Asia.
Foreign-Built Engines
Foreign marine engines command a premium price but deliver superior long-term value for high-demand applications:
Higher Initial Cost: 30–100% more expensive than DCEC units, but justified by longer service life (30,000+ hours vs. 15,000–20,000 hours for DCEC) and lower downtime in global operations.
Lower Total Cost of Ownership (TCO): Higher fuel efficiency (5–10% lower consumption) and longer overhaul intervals reduce long-term operating costs for large fleets.
Resale Value: Foreign engines retain 60–70% of their value after 10 years, vs. 40–50% for DCEC units, due to global brand recognition and parts availability.
For example, a foreign-built Caterpillar 3516C marine engine (2000 kW) has a 5-year TCO 15% lower than a comparable DCEC engine for a 24/7 operating offshore support vessel.
5. Service and Support Network: Regional Dominance vs. Global Reach
DCEC
DCEC’s service network is concentrated in China and Southeast Asia, with over 300 authorized service centers and 24/7 roadside assistance for inland waterways. Key strengths include:
Local Expertise: Technicians trained in Chinese marine operating conditions, with quick access to domestic spare parts warehouses.
Customized Support: On-site maintenance and repair for inland vessels, with 48-hour response times in major river systems (Yangtze, Pearl River).
Cost-Effective Service: Lower labor and parts costs for routine maintenance, e.g., a DCEC B3.9 overhaul costs ~¥30,000 vs. ~¥50,000 for a foreign engine.
Foreign-Built Engines
Global manufacturers offer a truly worldwide service network, with 5,000+ service centers across 190 countries, including portside facilities in major international harbors. Key advantages:
24/7 Global Support: Emergency repair teams available within 24 hours in all major ports, with airfreighted spare parts for critical failures.
Global Warranty: Standard 2-year/5,000-hour warranties, with extended coverage options for international fleets.
Technical Expertise: Access to original engineering teams for complex issues, e.g., Cummins’ marine technical center in the US provides remote diagnostics for QSK-series engines.
For a vessel operating in the Mediterranean, a foreign-built Wärtsilä engine can be serviced in 100+ ports, while a DCEC engine would rely on limited local agents with longer lead times.
6. Application Adaptability: Inland/Coastal Focus vs. Ocean-Going Versatility
DCEC
DCEC engines excel in inland and nearshore applications with frequent maneuvering, variable loads, and lower fuel quality:
Inland Cargo Vessels: Compact size and low-speed torque suit narrow rivers and shallow waters; e.g., the C8.3 series powers 300–500 ton Yangtze cargo barges.
Fishing Boats: Fuel efficiency and cold-start performance are critical for small-scale fishing operations in coastal China.
Auxiliary Generators: Reliable power for small passenger ferries and workboats, with CCS (China Classification Society) certification.
Foreign-Built Engines
Foreign engines dominate ocean-going and high-demand applications requiring long-distance reliability, emission compliance, and high power:
Large Commercial Vessels: MAN and Wärtsilä two-stroke engines power container ships and bulk carriers, with fuel efficiency for transoceanic routes.
Offshore Platforms: Caterpillar and Cummins QSK-series engines provide continuous power for drilling rigs, with resistance to saltwater corrosion and extreme temperatures.
Luxury Yachts: High-performance foreign engines (e.g., Cummins QSZ13) offer lightweight design and quiet operation, meeting international luxury standards.
Conclusion
DCEC marine engines and foreign-built counterparts represent two distinct approaches to marine power: DCEC focuses on localized affordability, regional adaptability, and cost-effective service for inland/coastal Asian markets, while foreign engines prioritize global standardization, premium performance, and worldwide support for ocean-going and high-demand applications. DCEC leverages Cummins’ core technology with domestic manufacturing to deliver value for cost-sensitive operators, while foreign manufacturers invest in precision engineering and global infrastructure to meet the rigorous demands of international maritime trade.
The choice between the two depends on vessel type, operating environment, and budget: DCEC engines are ideal for small-to-medium inland/coastal vessels in Asia, while foreign-built engines are indispensable for large ocean-going fleets and global operations. As the marine industry evolves toward stricter emissions and higher efficiency, both segments will continue to innovate—DCEC by expanding its high-power lineup and foreign manufacturers by optimizing localization in key markets like China.
